Big Spring
For Beef & Dairy Cattle
Miraco’s BigSpring Waterer features:
• One-piece body polyethylene construction
• No sharp edges
• Tough “Rockite” material, high-impact resistance
• Rugged construction stands up to livestock abuse – resists corrosion, no chipping or cracking
• 5-year warranty
• 2” to 3” (5 cm to 8 cm) urethane insulation
• Rubber gaskets for air-tight seal
• Molded base unit anchors (stainless steel bolts included)
• Sloped bottom for easy cleaning
• Sealed bottoms
• Multiple access panels for easy access
• Preferred choice of cattle and dairy producers
Click on the product listing to the right to get details on each Big Spring model.
-

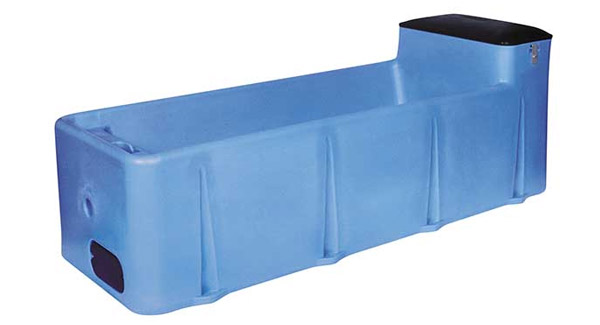

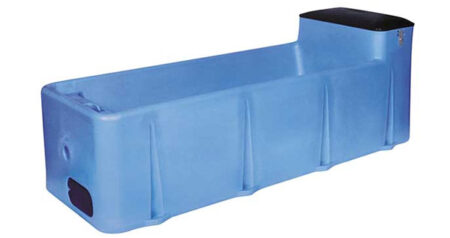

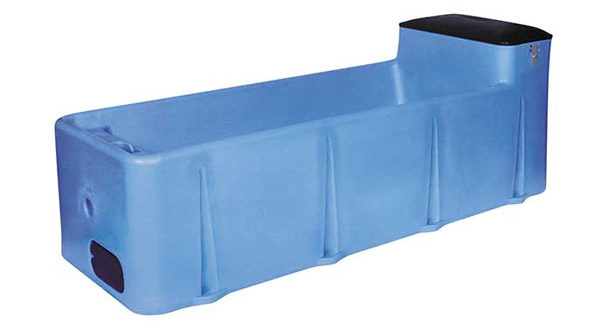

BigSpring 6000
BigSpring 6000
60 Gallon Capacity
For cleaner water, the Miraco Big Spring 6000 requires a neck rail to prevent cattle from standing in the water. 10″ to 12″ stem wall recommended.
• Water spray for attracting new cattle to water
• 3-inch (8 cm) drain hole with rubber plug for rapid cleaning
• Removable dome for easy access to valve area
• Spring-loaded clips – no wrenches required
• Rubber gasket for air-tight dome seal
• End panel access
• Can be constant flow at 30 or 60 gallon level (114 or 227 liters)DOWNLOAD THE INSTALLATION GUIDE HERE
CAPACITY 250 head beef
110 head dairyGALLONS 60 (227 liters) (up to 30 gallons more than the competition)
LENGTH 90” (229 cm)
WIDTH
33” (84 cm)
DRINKING HEIGHT 24” (61 cm) (2” higher than the competition)
WEIGHT 215 pounds (97 kg)
HEAT 500 watt heater (optional) (110 or 220 volt)
Optional constant flow available (30 or 60 gallon level) Quick View -

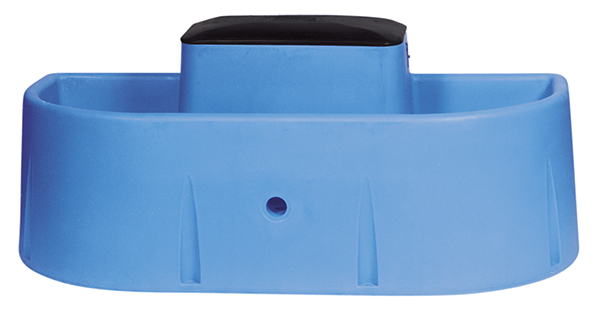

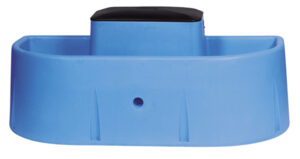

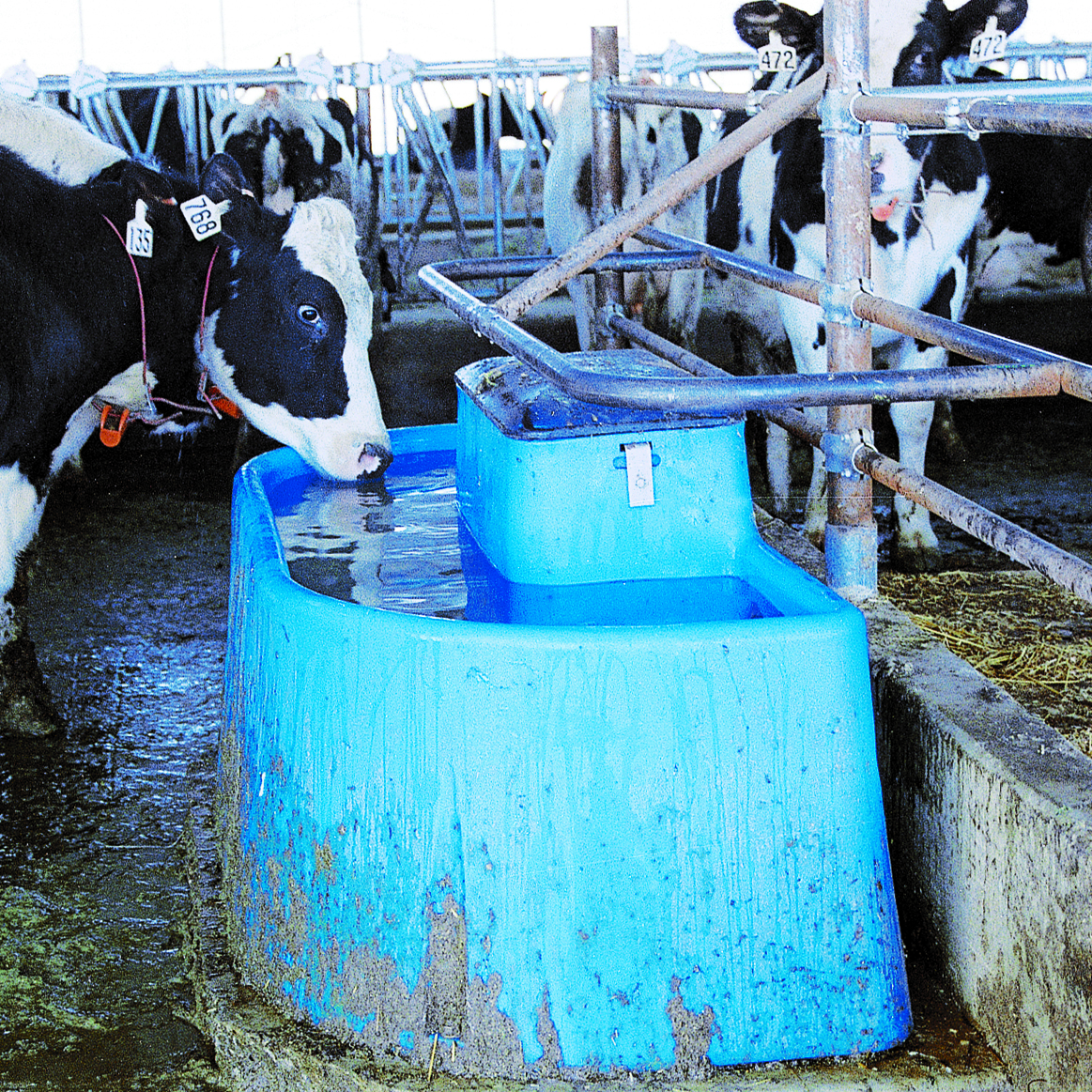

BigSpring 6100
BigSpring 6100
Miraco’s BigSpring 6100 has a 60-gallon capacity.
New bottom drain feature helps the BigSpring 6100 drain fast and completely.
For cleaner water, neck rail required to prevent cattle from standing in the water.• Flat back design fits flush with wall
• Center between stalls or place one on each end of single stalls
• Curved front for full, easy access – no wasted space
• Pour foundation with a curve for easier cleaning
• No wrenches required for valve compartment access
• Rubber gasket for air-tight dome seal
• Stainless steel anchor bolts includedDOWNLOAD THE INSTALLATION GUIDE HERE
CAPACITY 110 head dairy
GALLON 60 (227 liters)
LENGTH 80” (203 cm)
WIDTH 36” (91 cm)
DRINKING HEIGHT 24” (61 cm)
WEIGHT 205 pounds (93 kg)
HEAT 500 watt heater (optional)
(110 or 220 volt)Quick View -

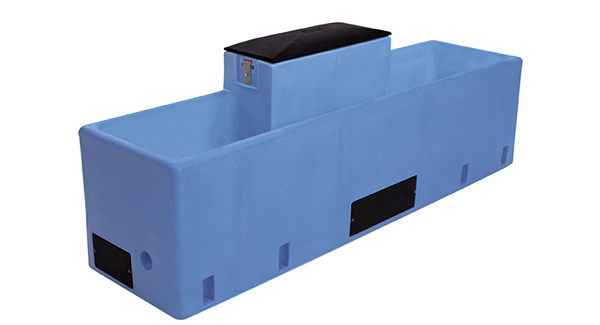

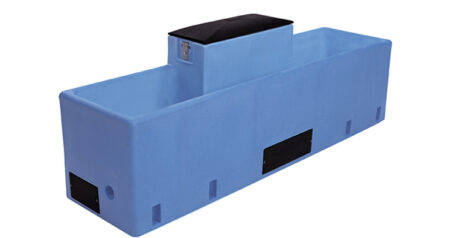

BigSpring 6200
BigSpring 6200
60 Gallon Capacity
For cleaner water, neckrail required to prevent cattle from standing in the water.
10″ to 12″ stem wall recommended.• Designed for free stall barns
• Flat back design for flush fit with wall or panel
• Center between stalls
• No wrenches required for valve compartment access
• Rubber gasket for air-tight dome seal
• Three access panels
• Two large 3” drains; severe slope for quick draining
• Optional gravity fill assembly available
• Stainless steel anchor bolts includedDOWNLOAD THE INSTALLATION GUIDE HERE
CAPACITY 100 head dairy
200 head beefGALLONS 60 (227 liters)
LENGTH 84” (213 cm)
WIDTH 22” (56 cm)
DRINKING HEIGHT 22” (56 cm)
WEIGHT 170 pounds (77 kg)
HEAT 500 watt heater (optional)
(110 or 220 volt)Quick View -

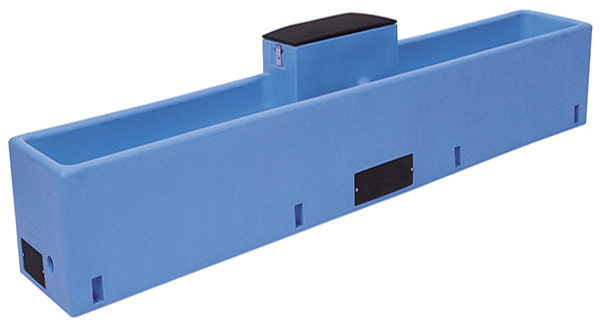

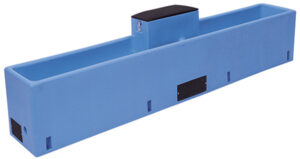

BigSpring 6300
BigSpring 6300
110 Gallon Capacity
2″ narrower than competition and holds 110 gallons of water vs 60 gallons.
For cleaner water, neckrail required to prevent cattle from standing in the water.
10″ to 12″ stem wall recommended.• Designed for free stall barns
• Flat back design for flush fit with wall or panel
• Center between stalls
• No wrenches required for valve compartment access
• Rubber gasket for air-tight dome seal
• Three access panels
• Two large 3” drains; severe slope for quick draining
• Optional gravity fill assembly available
• Stainless steel anchor bolts includedDOWNLOAD INSTALLATION GUIDE HERE
CAPACITY 150 head dairy
300 head beefGALLONS 110 (416 liters)
LENGTH 144” (366 cm)
WIDTH 22” (56 cm)
DRINKING HEIGHT 22” (56 cm)
WEIGHT 275 pounds (125 kg)
HEIGHT 500 watt heater (optional)
(110 or 220 volt)
Quick View -

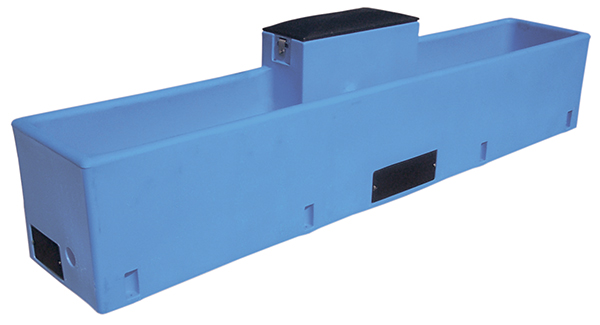

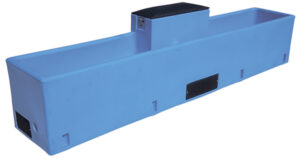

BigSpring 6400
BigSpring 6400
90 Gallon Capacity
For cleaner water, neckrail required to prevent cattle from standing in the water.
10″ to 12″ stem wall recommended.• Designed for free stall barns
• Flat back design for flush fit with wall or panel
• Center between stalls
• No wrenches required for valve compartment access
• Rubber gasket for air-tight dome seal
• Three access panels
• Two large 3” drains; severe slope for quick draining
• Optional gravity fill assembly available
• Stainless steel anchor bolts includedBottom drain available on all BigSpring Miraco waterers.
DOWNLOAD THE INSTALLATION GUIDE HERE
CAPACITY 125 head dairy
250 head beefGALLONS 90 (340 liters)
LENGTH 120” (305 cm)
WIDTH 22” (56 cm)
DRINKING HEIGHT 22” (56 cm)
WEIGHT 230 pounds (104 kg)
HEAT 500 watt heater (optional)
(110 or 220 volt)Quick View -
BigSpring 6500
BigSpring 6500
130 Gallon Capacity – Largest Waterer at 14′ Feet
For cleaner water, the Miraco Big Spring 6500 requires a neck rail to prevent cattle from standing in the water. 10″ to 12″ stem wall recommended.
• Water spray for attracting new cattle to water
• Removable dome for easy access to valve area
• Spring-loaded clips – no wrenches required
• Rubber gasket for air-tight dome seal
• Can be constant flow at 30 or 60 gallon level (114 or 227 liters
• Designed for free stall barns
• Flat back design for flush fit with wall or panel
• Center between stalls
• No wrenches required for valve compartment access
• Rubber gasket for air-tight dome seal
• Three access panels
• Two large 3” drains; severe slope for quick draining
• Optional gravity fill assembly available
• Stainless steel anchor bolts includedBottom drain available on all BigSpring Miraco waterers.
CAPACITY 175 head dairy
350 head beefGALLONS 130 Gallon Capacity – Largest Waterer at 14′ Feet LENGTH 168” (427 cm)
WIDTH 22” (56 cm)
DRINKING HEIGHT 22” (56 cm)
WEIGHT 230 pounds
HEAT 500 watt heater (optional)
(110 or 220 volt)Quick View
