Livestock Drinking Systems in Wisconsin
LilSpring Multi-purpose Waterers
Miraco’s LilSpring Muliti-purpose Waterers for general livestock feature:
• One-piece body polyethylene construction
• No sharp edges
• Tough high-impact resistant “Rockite” material
• The durability to stand up to livestock abuse
• Resistance to corrosion
• 5-year warranty
• Removable dome for quick and easy access to valve area
• 2” to 3” (5 to 8 cm) urethane foam insulation
• Molded base unit anchors (stainless steel anchor bolts included)
• Sloped bottom for easy cleaning
• Sealed bottoms
Click on the product listing to the right to get details on each LilSpring Multi-purpose waterers model.
-

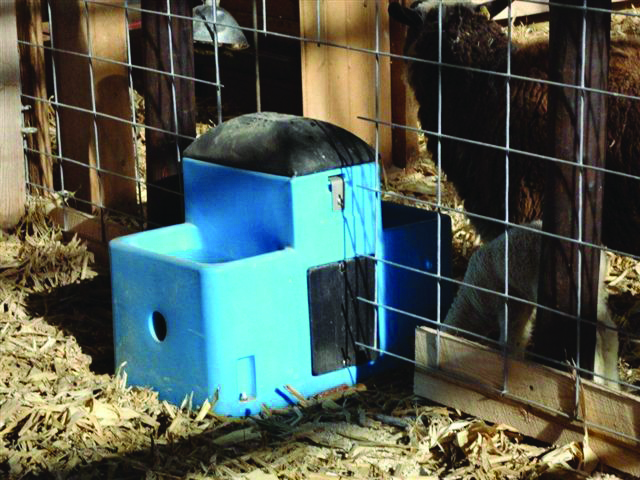

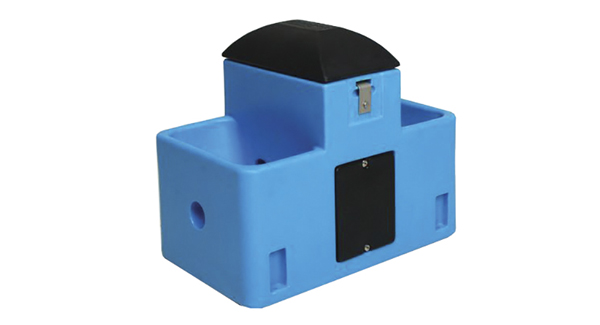

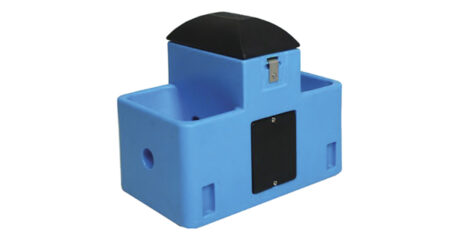

LilSpring 2700
LilSpring 2700
Ideal for sheep, goats and young stock
• Two 3” (8 cm) side drain outlets for outside use
• Stainless steel anchor bolts included
• One-piece body polyethylene construction
• No sharp edges
• Tough high-impact resistant “Rockite” material
• The durability to stand up to livestock abuse
• Resistance to corrosion
• 5-year warranty
• Removable dome for quick and easy access to valve area
• 2” to 3” (5 to 8 cm) urethane foam insulation
• Molded base unit anchors (stainless steel anchor bolts included)
• Sloped bottom for easy cleaning
• Sealed bottomsDOWNLOAD INSTALLATION GUIDE HERE
CAPACITY 100 head sheep/goats GALLONS 6 (22.7 liters) LENGTH 28.75” (73 cm) WIDTH 17.5” (44.5 cm) DRINKING HEIGHT 14” (35.5 cm) WEIGHT 40 pounds (18.15 kg) HEAT Optional 250 and 500 watt submersible heater Quick View -

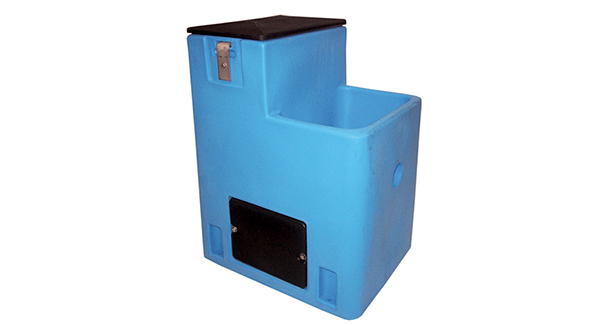

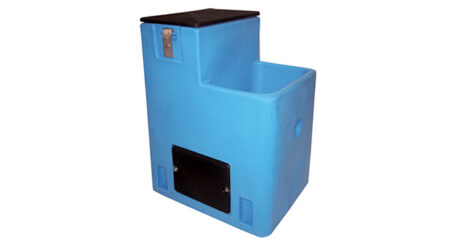

LilSpring 2800
LilSpring 2800
Ideal for sheep, goats, horses or young stock
• 3” (8 cm) front drain outlet for outside use
• Stainless steel anchor bolts included
• One-piece body polyethylene construction
• No sharp edges
• Tough high-impact resistant “Rockite” material
• The durability to stand up to livestock abuse
• Resistance to corrosion
• 5-year warranty
• Removable dome for quick and easy access to valve area
• 2” to 3” (5 to 8 cm) urethane foam insulation
• Molded base unit anchors (stainless steel anchor bolts included)
• Sloped bottom for easy cleaning
• Sealed bottomsDOWNLOAD THE INSTALLATION GUIDE HERE
CAPACITY 30 head beef or horses GALLONS 4 (15 liters) DIMENSIONS 20” x 16” x 27” tall (51 x 41 x 69 cm) DRINKING HEIGHT 19” (48 cm) VALVE Miraco automatic plastic WEIGHT 40 pounds (18 kg) HEAT Optional 250 and 500 watt submersible heater INSTALL 200 psi hose w/shut off valve included
Quick View -

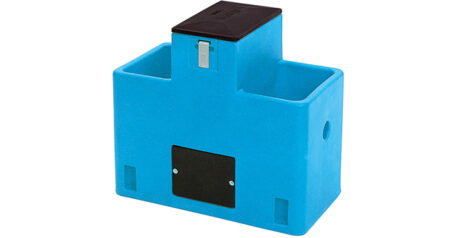

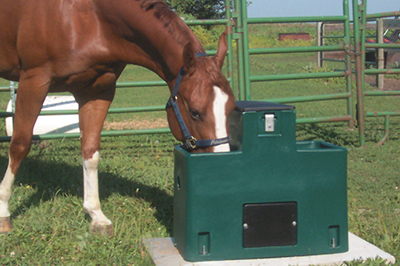

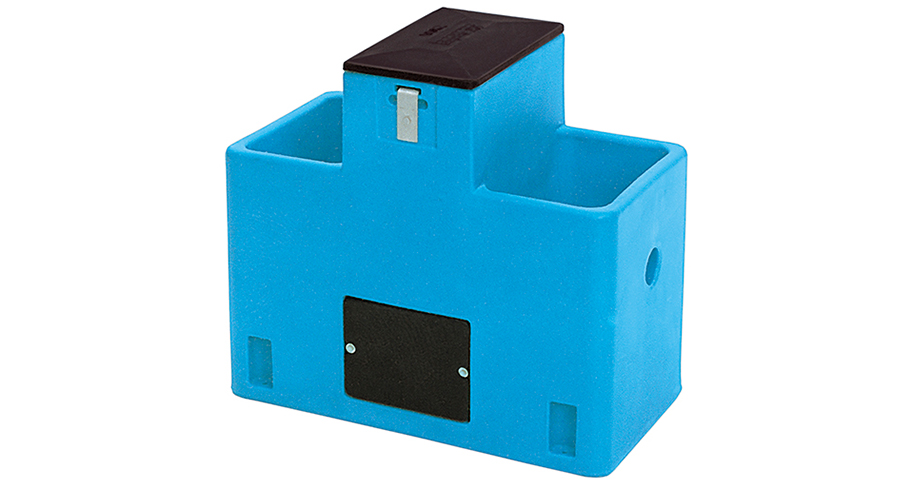

LilSpring 2900
LilSpring 2900
Ideal for For those small spaces – Horses, Beef, Dairy, sheep, goats and young stock
• Two 3” (8 cm) side drain outlets for outside use
• Stainless steel anchor bolts included
• One-piece body polyethylene construction
• No sharp edges
• Tough high-impact resistant “Rockite” material
• The durability to stand up to livestock abuse
• Resistance to corrosion
• 5-year warranty
• Removable dome for quick and easy access to valve area
• 2” to 3” (5 to 8 cm) urethane foam insulation
• Molded base unit anchors (stainless steel anchor bolts included)
• Sloped bottom for easy cleaning
• Sealed bottomsDOWNLOAD THE INSTALLATION GUIDE HERE
CAPACITY 60 head beef or horses GALLONS 6 (23 liters) DIMENSIONS 30.5” x 16.5” x 27” (77.5 x 40.6 x 69 cm) DRINKING HEIGHT 19” (48 cm) VALVE Miraco automatic plastic WEIGHT Miraco automatic plastic HEAT Optional 250 and 500 watt submersible heater INSTALL 200 psi hose w/shut off valve included
Quick View -

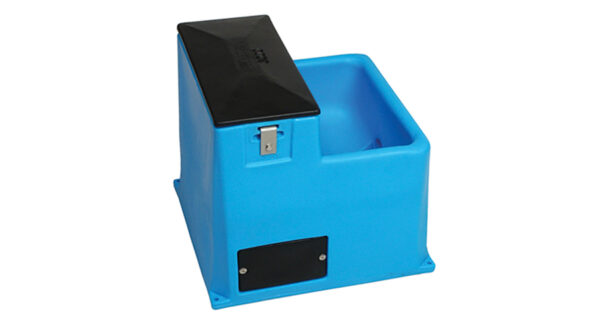

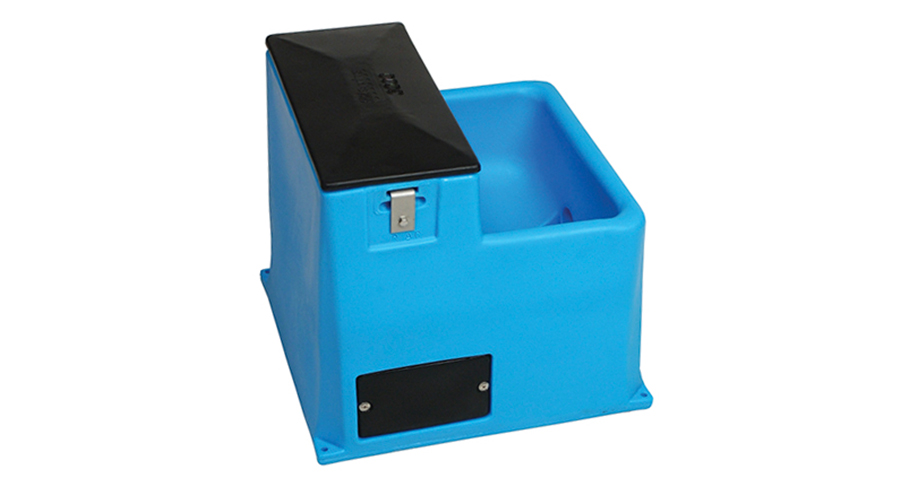

LilSpring 3000
LilSpring 3000
Ideal for For Horses, Beef, Dairy, sheep, goats and young stock
• 3” (8 cm) front drain outlet for outside use
• Stainless steel anchor bolts included
• One-piece body polyethylene construction
• No sharp edges
• Tough high-impact resistant “Rockite” material
• The durability to stand up to livestock abuse
• Resistance to corrosion
• 5-year warranty
• Removable dome for quick and easy access to valve area
• 2” to 3” (5 to 8 cm) urethane foam insulation
• Molded base unit anchors (stainless steel anchor bolts included)
• Sloped bottom for easy cleaning
• Sealed bottomsDOWNLOAD THE INSTALLATION GUIDE HERE
CAPACITY 30 head beef
30 head horses
50 head sheepGALLONS 5 (19 liters) DIMENSIONS 24” x 22” x 21” (61 x 56 x 53 cm) DRINKING HEIGHT 16” (40 cm) VALVE Miraco automatic plastic WEIGHT 48 pounds (22 kg) HEAT Optional 250 and 500 watt submersible heater Quick View -

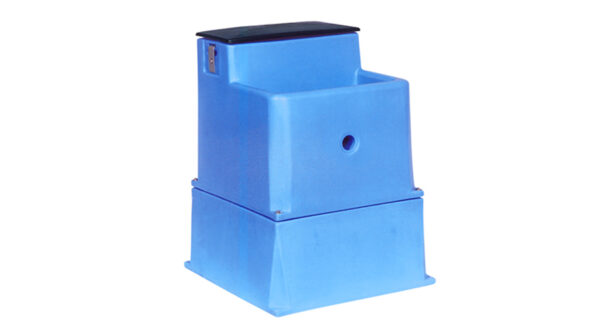

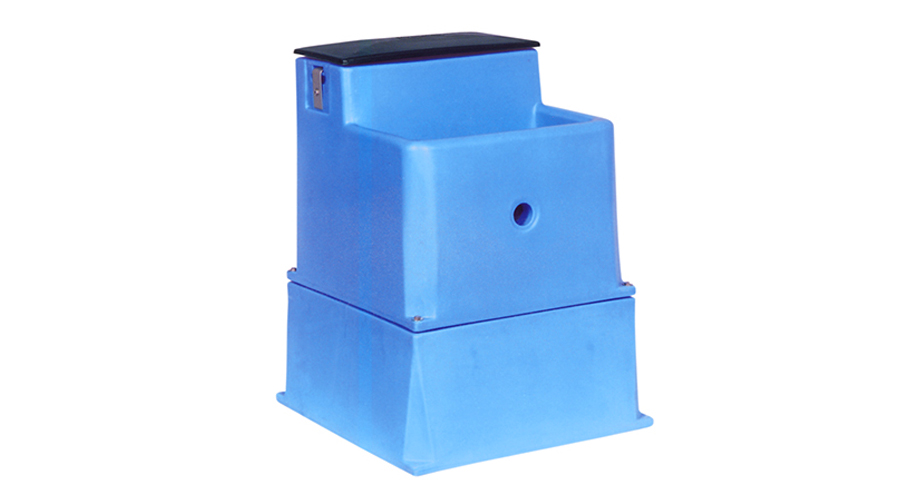

LilSpring 3002 Extension
LilSpring 3002 Extension
• Raises Lil’Spring 3000 and 3001 drinking height from 16” to 28” (40 to 71 cm)
• Ideal for installation in paddocks or stalls
• Makes water more visible
• Prevents livestock from putting feet in water bowlQuick View -

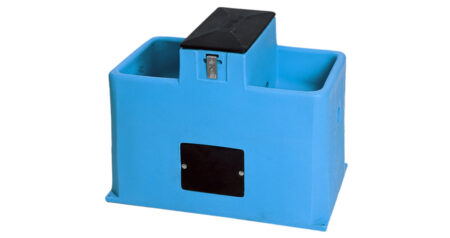

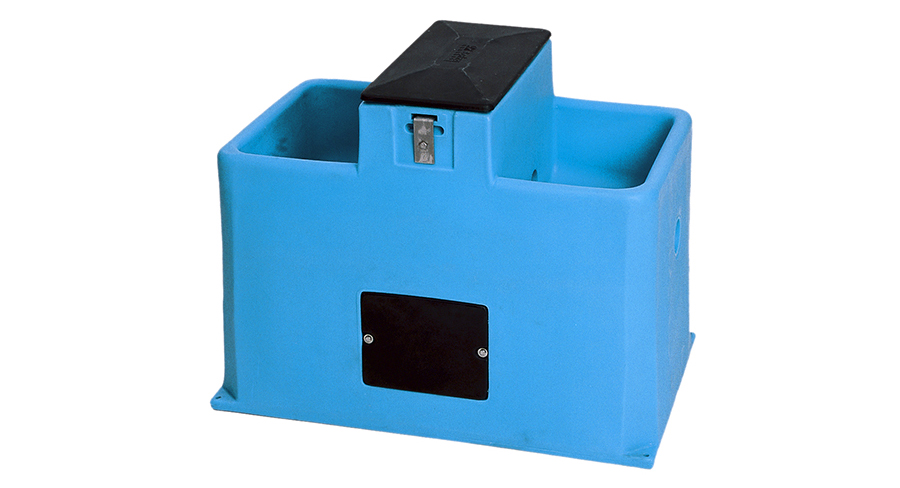

LilSpring 3100
LilSpring 3100
Ideal for For Horses, Beef, Dairy, sheep, goats and young stock
• Two 3” (8 cm) side drain outlets for outside use
• Stainless steel anchor bolts included
• One-piece body polyethylene construction
• No sharp edges
• Tough high-impact resistant “Rockite” material
• The durability to stand up to livestock abuse
• Resistance to corrosion
• 5-year warranty
• Removable dome for quick and easy access to valve area
• 2” to 3” (5 to 8 cm) urethane foam insulation
• Molded base unit anchors (stainless steel anchor bolts included)
• Sloped bottom for easy cleaning
• Sealed bottomsDOWNLOAD THE INSTALLATION GUIDE HERE
CAPACITY 100 head beef
50 head dairyGALLONS 8 (30 liters) DIMENSIONS 36” x 22” x 27” (91 x 56 x 69 cm) DRINKING HEIGHT 22” (55.8 cm) VALVE Miraco automatic plastic WEIGHT 75 pounds (34 kg) HEAT Optional 250 and 500 watt submersible heater Quick View -

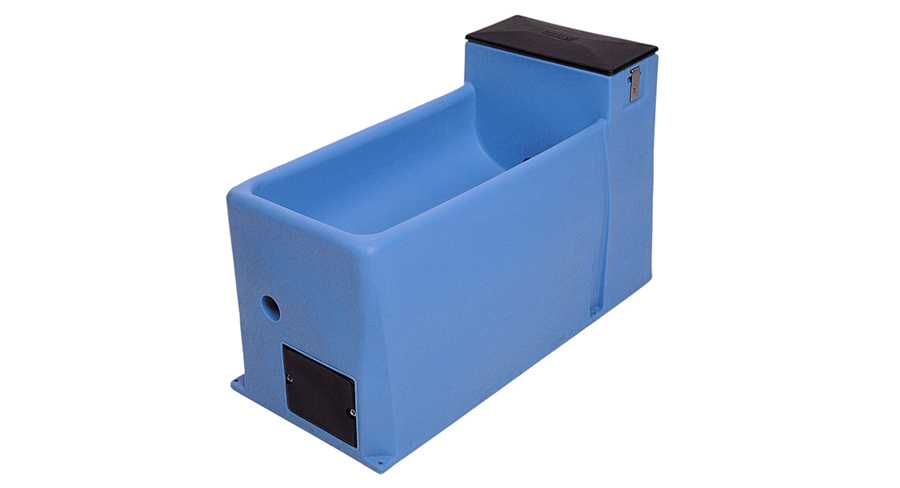

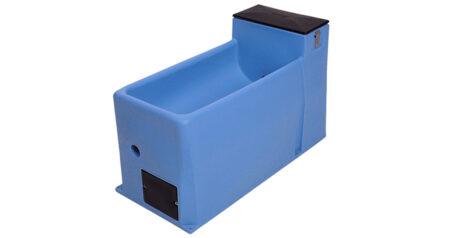

LilSpring 3200
LilSpring 3200
25 Gallon Capacity
• Large access panel for easy access to valve area
• 3” (8 cm) offset drain
• Access panels at both ends
• Installs easily on most existing concrete pads
• Spring load clips allow entry to valve area – no wrenches required
• Constant flow available
• Stainless steel anchor bolts includedDOWNLOAD THE INSTALLATION GUIDE HERE
CAPACITY 150 head beef
75 head dairyGALLONS 25 (95 liters) DIMENSIONS 48” x 24” x 29” (122 x 61 x 74 cm) DRINKING HEIGHT 24” (61 cm) VALVE Miraco automatic plastic WEIGHT 98 pounds (45 kg) HEAT Optional 250 and 500 watt submersible heater Quick View -

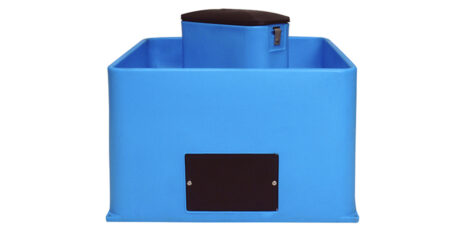

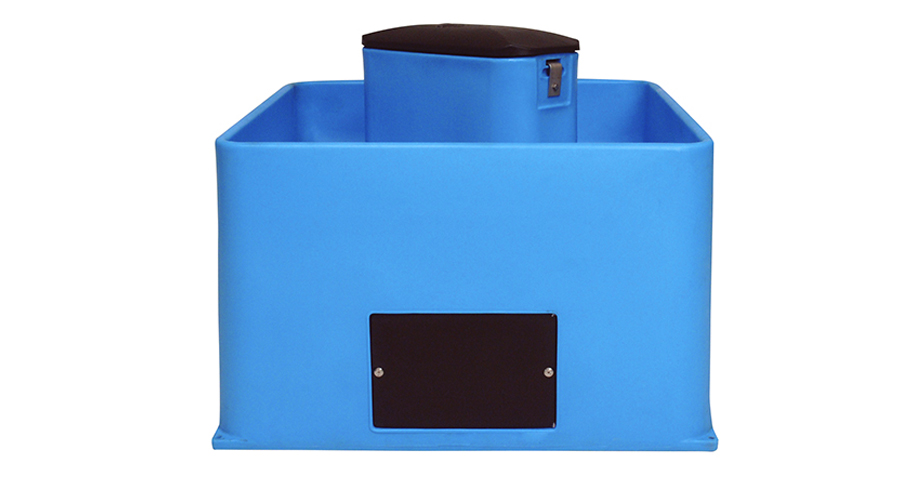

LilSpring 3500
LilSpring 3500
40 Gallon Capacity
• 168” Drinking space
• 40 Gallons of water
• Quick release valve access cover
• Diagonal valve compartment lets more cattle drink
• 24” hook-up hose with shut off valve
• Stainless steel anchor bolts
• 2 bottom drainsDOWNLOAD THE INSTALLATION GUIDE HERE
CAPACITY 225 head beef
110 head dairyGALLONS 40 (152 liters) DIMENSIONS 42” x 42” x 26” (107 X 107 X 66 cm) DRINKING HEIGHT 26” (66 cm) VALVE Miraco automatic plastic WEIGHT 145 pounds (65 kg) HEAT Optional 250 and 500 watt submersible heater Quick View
