Mira Fount
MiraFount Waterers
Miraco’s Mira-Fount waterers feature:
- Polyethylene construction
- No sharp edges
- Tough high-impact resistant “Rockite” material
- Stands up to livestock abuse
- Resistant to corrosion
- 5 year warranty
- Patented Miraco roll-away ball closures
- Extra insulation above the valve area
- Removable dome for quick and easy access to valve area
- 2″ to 3″ (5 to 8cm) urethane insulation
- Molded base unit anchors (stainless steel anchor bolts included)
- Sealed bottoms
- Sloped bottoms for easier cleaning – a MiraFount exclusive
MiraFount waterers –
the best choice for your watering needs.
-

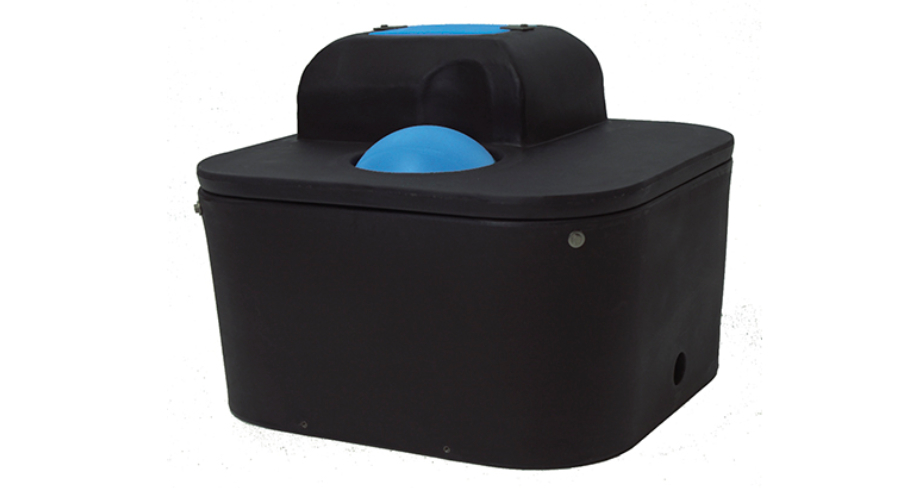

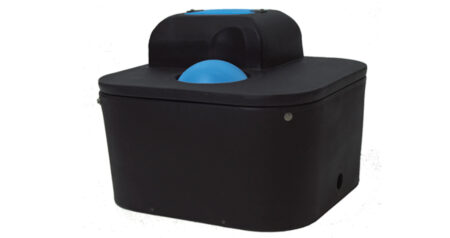

MiraFount 3330
MiraFount 3330
For beef and dairy
Miraco’s Mira-Fount waterers feature:
- Polyethylene construction
- No sharp edges
- Tough high-impact resistant “Rockite” material
- Stands up to livestock abuse
- Resistant to corrosion
- 5 year warranty
- Patented Miraco roll-away ball closures
- Extra insulation above the valve area
- Removable dome for quick and easy access to valve area
- 2″ to 3″ (5 to 8cm) urethane insulation
- Molded base unit anchors (stainless steel anchor bolts included)
- Sealed bottoms
- Sloped bottoms for easier cleaning – a MiraFount exclusive
DOWNLOAD INSTALLATION GUIDE HERE
CAPACITY 50 head beef
25 head dairyGALLONS 15 (57 liters) SPECIFICATIONS One 8.75” opening / 9” ball closure DIMENSIONS 28” x 26” x 14” (71 x 66 x 35.5 cm) WEIGHT 59 pounds (27 kg) DRINKING HEIGHT 14” (35.5 cm) Quick View -

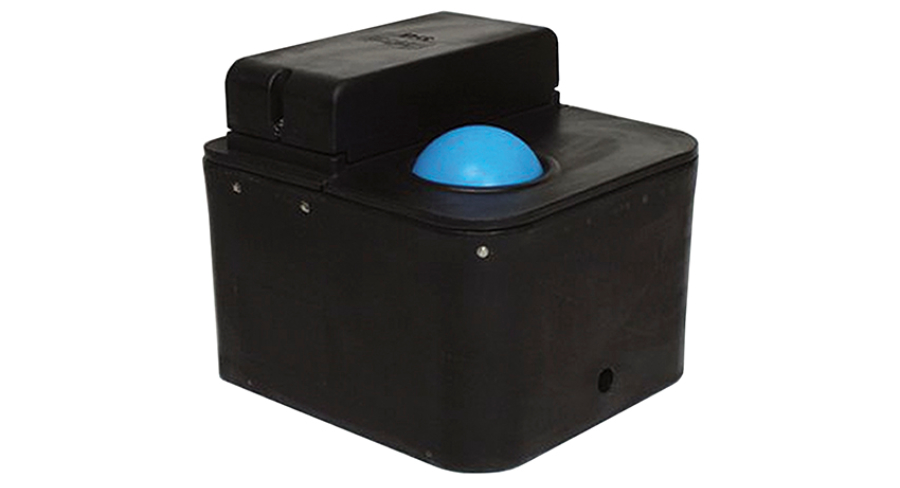

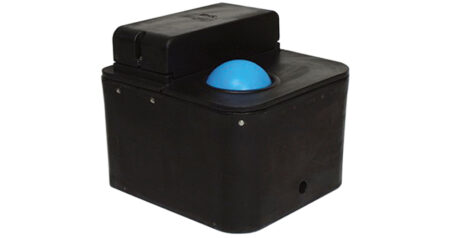

MiraFount 3345
MiraFount 3345
For beef and dairy
Miraco’s Mira-Fount waterers feature:
- Polyethylene construction
- No sharp edges
- Tough high-impact resistant “Rockite” material
- Stands up to livestock abuse
- Resistant to corrosion
- 5 year warranty
- Patented Miraco roll-away ball closures
- Extra insulation above the valve area
- Removable dome for quick and easy access to valve area
- 2″ to 3″ (5 to 8cm) urethane insulation
- Molded base unit anchors (stainless steel anchor bolts included)
- Sealed bottoms
- Sloped bottoms for easier cleaning – a MiraFount exclusive
DOWNLOAD INSTALLATION GUIDE HERE
CAPACITY 75 head beef
30 head dairyGALLONS 30 (112 liters) SPECIFICATIONS One 10” opening (10-3/4” ball) DIMENSIONS 29” x 31” x 18” (73.6 x 109 x 66 cm) WEIGHT 95 pounds (43 kg) DRINKING HEIGHT 18” (66 cm) Quick View -

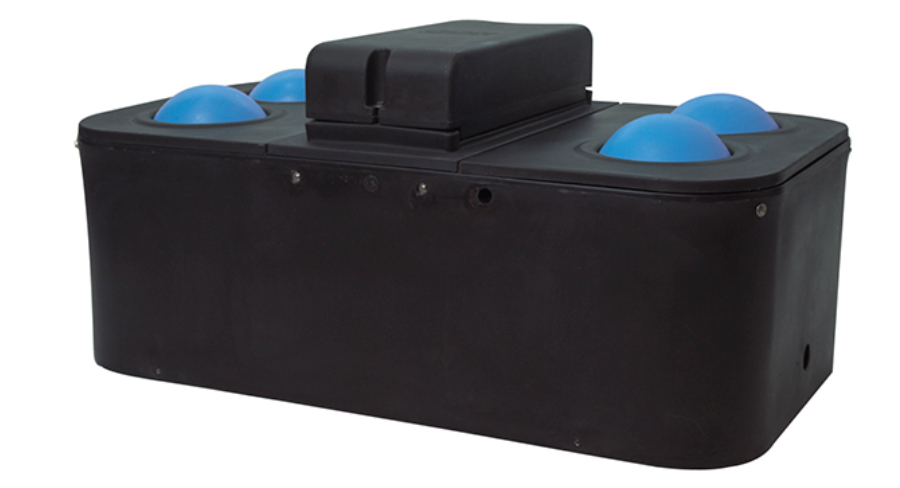

MiraFount 3354-S
MiraFount 3354-S
MiraFount Beef & Dairy Cattle Waterers
Miraco’s Mira-Fount waterers feature:
- Polyethylene construction
- No sharp edges
- Tough high-impact resistant “Rockite” material
- Stands up to livestock abuse
- Resistant to corrosion
- 5 year warranty
- Patented Miraco roll-away ball closures
- Extra insulation above the valve area
- Removable dome for quick and easy access to valve area
- 2″ to 3″ (5 to 8cm) urethane insulation
- Molded base unit anchors (stainless steel anchor bolts included)
- Sealed bottoms
- Sloped bottoms for easier cleaning – a MiraFount exclusive
Removable top end panels help get new cattle started fast or when you need more capacity for a few extra head.
Cattle love the roll-away ball feature. Nothing in their face while drinking, unlike the competition’s design where they have the disc constantly in their face.
When you see the blue balls up you know you have water, even from a distance.
DOWNLOAD INSTALLATION GUIDE HERE
CAPACITY 200 head beef
90 head dairyGALLONS 70 (265 liters) SPECIFICATIONS Four 9.5” openings / 10.75” ball closures (convertible) DIMENSIONS 57.5” x 32.5” x 19” (146 x 82 x 48 cm) WEIGHT 152 pounds (69 kg) DRINKING HEIGHT 19” (48 cm) Quick View -

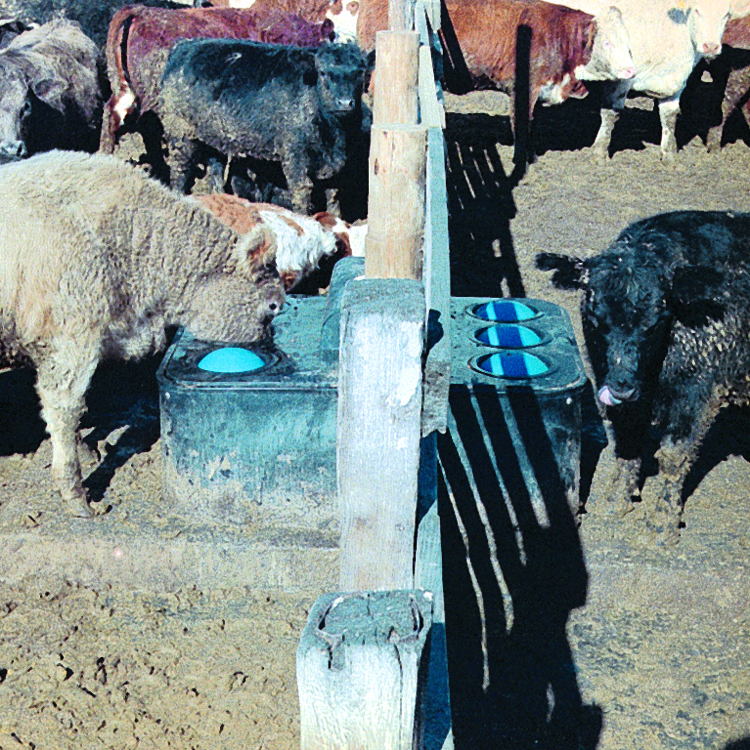

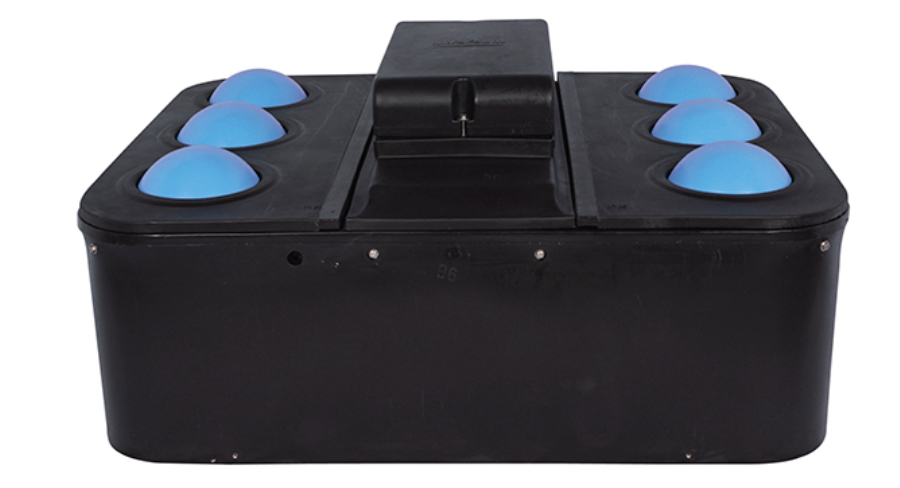

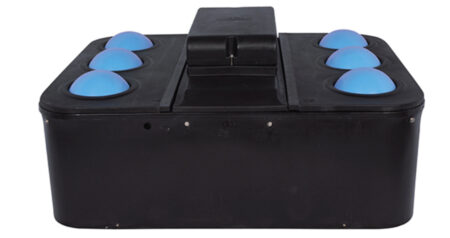

MiraFount 3370-S
MiraFount 3370-S
For beef and dairy
Features removable end panels to help get new cattle started fast or when you need more capacity for a few extra head. Two valves are provided for fast recovery.
When you see the blue balls up you know you have water, even from a distance.- Polyethylene construction
- No sharp edges
- Tough high-impact resistant “Rockite” material
- Stands up to livestock abuse
- Resistant to corrosion
- 5 year warranty
- Patented Miraco roll-away ball closures
- Extra insulation above the valve area
- Removable dome for quick and easy access to valve area
- 2″ to 3″ (5 to 8cm) urethane insulation
- Molded base unit anchors (stainless steel anchor bolts included)
- Sealed bottoms
- Sloped bottoms for easier cleaning – a MiraFount exclusive
DOWNLOAD INSTALLATION GUIDE HERE
CAPACITY 250 head beef
120 head dairy
200 cow/calf unitsGALLONS 100 (378 liters) SPECIFICATIONS Six 9.5” openings / 10.75” ball closure DIMENSIONS 57.5” x 45.5” x 20” (146 x 115 x 51 cm) WEIGHT 216 pounds (98 kg) DRINKING HEIGHT 20” (51 cm) Quick View -

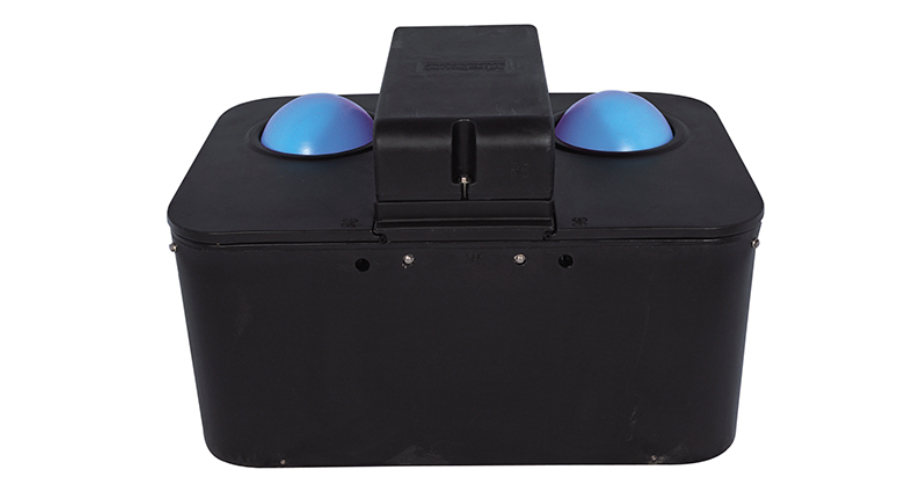

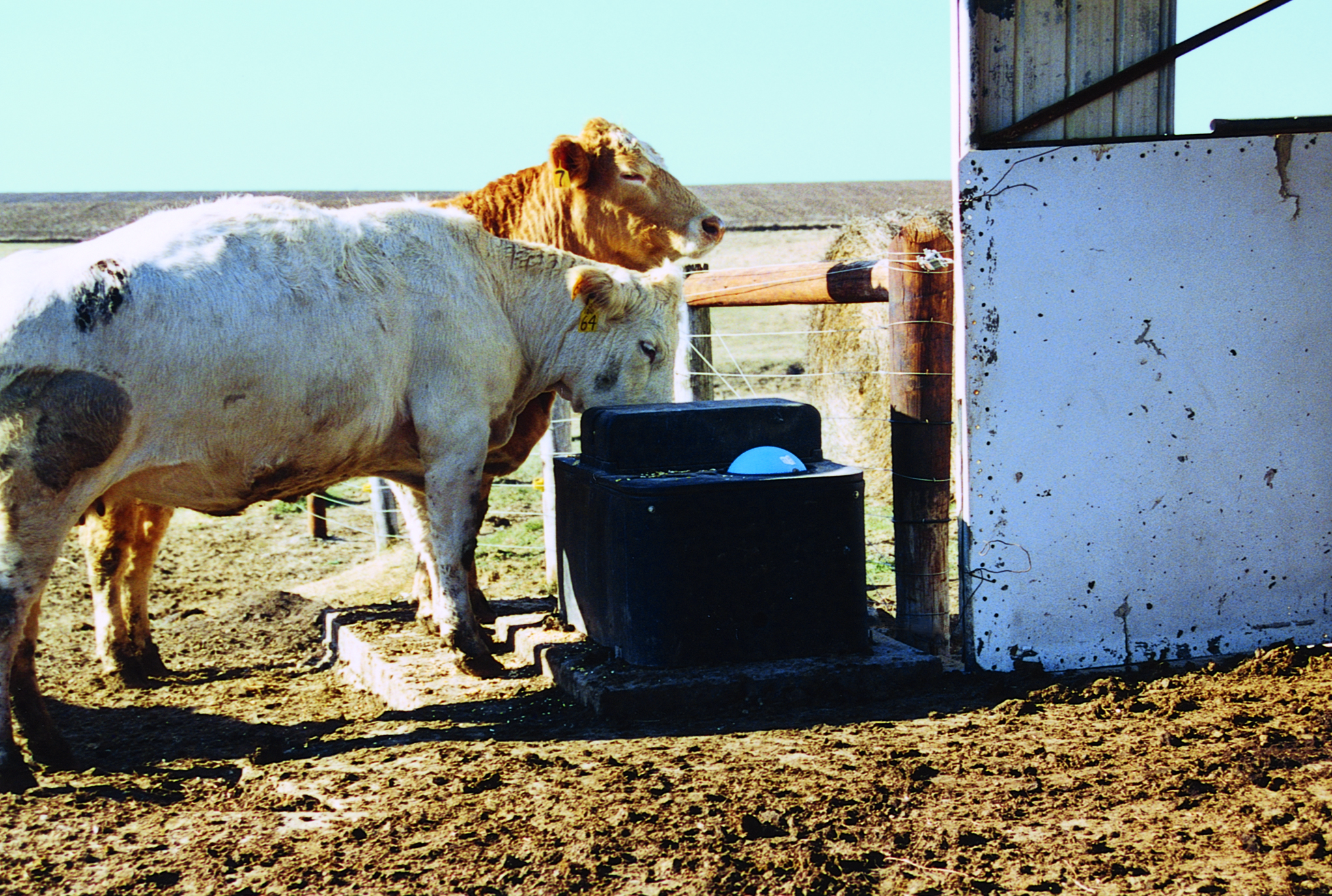

MiraFount 3390
MiraFount 3390
- Polyethylene construction
- No sharp edges
- Tough high-impact resistant “Rockite” material
- Stands up to livestock abuse
- Resistant to corrosion
- 5 year warranty
- Patented Miraco roll-away ball closures
- Extra insulation above the valve area
- Removable dome for quick and easy access to valve area
- 2″ to 3″ (5 to 8cm) urethane insulation
- Molded base unit anchors (stainless steel anchor bolts included)
- Sealed bottoms
- Sloped bottoms for easier cleaning – a MiraFount exclusive
Removable top end panels help get new cattle started fast or when you need more capacity for a few extra head.
Cattle love the roll-away ball feature. Nothing in their face while drinking, unlike the competition’s design where they have the disc constantly in their face.
When you see the blue balls up you know you have water, even from a distance.
DOWNLOAD INSTALLATION GUIDE HERE
CAPACITY 150 head beef
60 head dairyGALLONS 44 (166.5 liters) SPECIFICATIONS Two 10” openings / 10.75” ball closures (convertible) DIMENSIONS 43” x 29” x 20” (109 x 73.6 x 51 cm) WEIGHT 126 pounds (57 kg) DRINKING HEIGHT 20” (51 cm) Quick View -

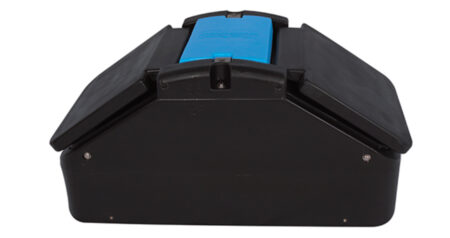

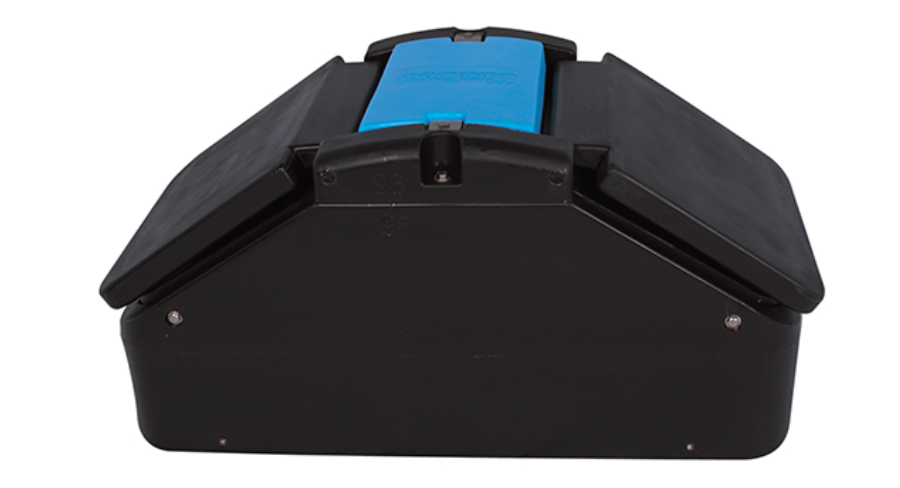

MiraFount 3410
MiraFount 3410
For Swine
Two large drain holes with rubber plugs for easy cleaning.Miraco’s Mira-Fount waterers feature:
- Patented underside lid seal for energy-free watering.
- Easy access to valve area.
- Low drinking height profile for small pigs.
- Large 10″ openings to accommodate market hogs and sows.
- Seamless sidewall construction.
- Stainless steel anchors and stainless steel bolts included.
- Drain holes with rubber plugs for easy cleaning.
- Cool water relieves heat stress on hot days.
MiraFount waterers –
the best choice for your hog watering needs.
DOWNLOAD INSTALLATION GUIDE HERE
CAPACITY 100 head market hogs
50 head sowsGALLONS 6 (23 liters) SPECIFICATIONS Two lift-up lids / 10” openings DIMENSIONS 34” x 19” x 16” tall (86 x 48 x 41 cm) WEIGHT 52 pounds (24 kg) Quick View -

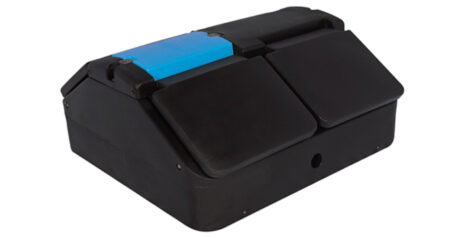

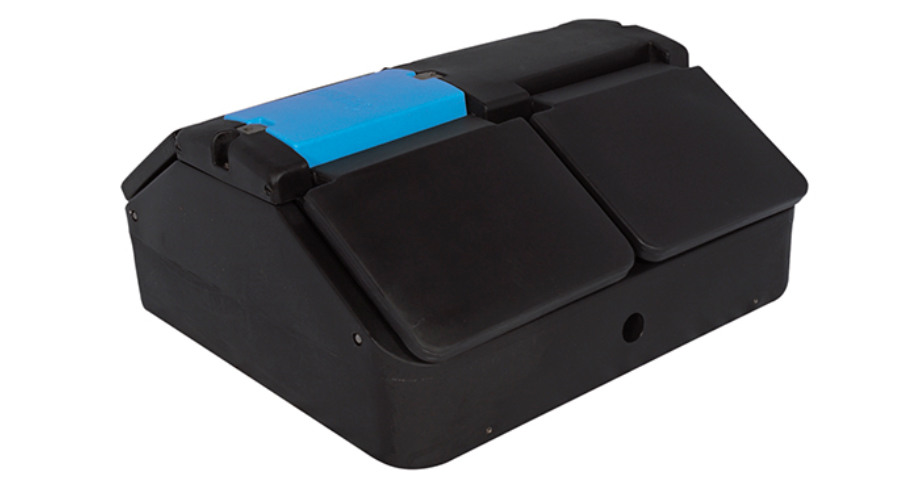

MiraFount 3410-4
MiraFount 3410-4
For Swine
Two large drain holes with rubber plugs for easy cleaning.Miraco’s Mira-Fount waterers feature:
- Patented underside lid seal for energy-free watering.
- Easy access to valve area.
- Low drinking height profile for small pigs.
- Large 10″ openings to accommodate market hogs and sows.
- Seamless sidewall construction.
- Stainless steel anchors and stainless steel bolts included.
- Drain holes with rubber plugs for easy cleaning.
- Cool water relieves heat stress on hot days.
MiraFount waterers –
the best choice for your hog watering needs.
DOWNLOAD INSTALLATION GUIDE HERE
CAPACITY 200 head market hogs
100 head sowsGALLONS 15 (57 liters) SPECIFICATIONS Four lift-up lids / 10” openings DIMENSIONS 34” x 36.5” x 16” tall (86 x 93 x 41 cm) WEIGHT 95 pounds (43 kg) Quick View -

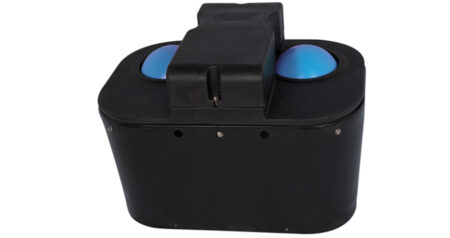

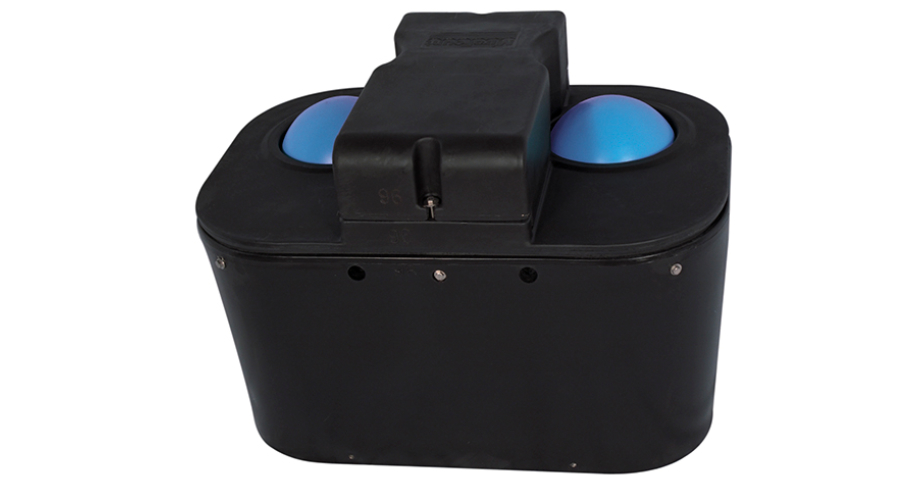

MiraFount 3465
MiraFount 3465
For beef and dairy
Miraco’s Mira-Fount waterers feature:
- Polyethylene construction
- No sharp edges
- Tough high-impact resistant “Rockite” material
- Stands up to livestock abuse
- Resistant to corrosion
- 5 year warranty
- Patented Miraco roll-away ball closures
- Extra insulation above the valve area
- Removable dome for quick and easy access to valve area
- 2″ to 3″ (5 to 8cm) urethane insulation
- Molded base unit anchors (stainless steel anchor bolts included)
- Sealed bottoms
- Sloped bottoms for easier cleaning – a MiraFount exclusive
DOWNLOAD INSTALLATION GUIDE HERE
CAPACITY 100 head beef
40 head dairyGALLONS 20 (75 liters) SPECIFICATIONS Two 9.25” openings / 10” ball closures DIMENSIONS 36” x 24” x 18” (91 x 61 x 46 cm) WEIGHT 79 pounds (36 kg) DRINKING HEIGHT 18” (46 cm) Quick View
